JECT 28 Projecting Sign Bracket

If you order bracket on its own before 2pm, Monday to Thursday, it is generally dispatched the same day for delivery the next working day. During busy times this may not be the case, we suggest that you contact us for delivery timescales if you need your bracket urgently.

If you order a bracket together with a simple panel, it may be dispatched the same day alongside the bracket, providing there are no special instructions or painting involved. If you order a ‘special’ panel, it usually adds 2 or 3 days to the dispatch time and if there is any painting to be done, please allow an additional 10 days.

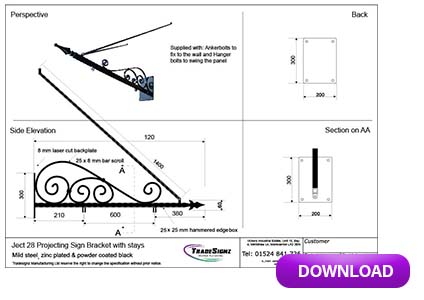

This bracket comes with 75mm long Ankerbolts for fixing it to the wall. Also known as Thunderbolts, these one-piece fixings are designed to ‘self-screw’ into solid brick, stone block, timber or concrete and they are a lot easier than ‘shield anchors’ such as Rawlbolts, they are also much neater. Please read the instructions that come with the bracket prior to commencing installation.

You will need a hammer drill with a 10mm bit that is at least 80mm long together with a 17mm spanner. The drill bit needs to be appropriate for your wall, i.e. a masonry bit for brick, stone, concrete or block alternatively a standard bit for timber. The holes need to be exactly 10mm diameter. Please read the instructions that come with the bracket prior to commencing installation.

If you order a panel together with this bracket you will automatically get all the appropriate fixings.

If you are supplying your own panel, you will need a pair of hanger fixings appropriate to your panel:

• for a simple 3mm thick sheet of ACM or aluminium, you will need a pair of ‘Quicklinks’.

• for a panel which is 19mm (or thicker) and not too heavy, you will need a pair of ‘screw in eyes’ and some epoxy resin.

• for a heavy panel and/or with a heavy frame, we suggest you order a traditional hanger strap.

As we manufacture our brackets 'in house', we can have any bracket powder coated or painted in virtually any colour you like. Just advise us of the RAL colour code at the time of ordering. This option usually adds 7-10 days to the order and a surcharge of £40 to £60 depending on the colour required.

We manufacture double sided sign panels in a range of styles and from several different materials.

The cheapest option is a single sheet of ACM, but as this is a light material, it is subject to being blown around, being damaged or wearing out more quickly than a heavier panel. A 19mm PVC or a traditionally framed aluminium panel is much more durable and will provide you with a long-lasting sign. Basically, it comes down to cost & aesthetics.

Yes, it can. We carry a range of options, from traditional decorative swan neck lights to modern LED trough lights. Whatever your choice, we have the required attachment to fix them to your sign.

Yes, each of our brackets goes through a two-stage protection process.

Firstly, each bracket passes through a series of chemical baths to clean & de-grease it and then we apply a zinc plate rust inhibitor coating which gets into every nook & cranny. To finish, a polyester powder coat is applied which is baked in a high temperature oven for a very durable & long-lasting coat.

Yes, our brackets are made in our workshop in the UK from heavy duty mild steel and are designed to last a very long time. Some of our competitors manufacture and supply lightweight brackets made from 3mm thick material, we use 6mm thick for the same job. Some brackets also have had a ‘one dip’ paint coating, which is not as durable as the two-stage protection each of our brackets receives.
