LED Pictorial Kit

Double Trough Light LED Kit
Either Cool White (6000k) Lux 243, Daylight & Warm White (2800-3200k) Lux 325 options.
24 volt, 12w per metre
Photocell Switches to automatically turn it on at sunset and off at sunrise. We offer a built in (pre-wired) version and a seperate wall fixing option for you electrician to connect
To fix to Projecting wall mounted bracket (not included)

more info...

£181.44 ex VAT (each)

Size

Colour (body & brackets)

4 Digit RAL

Maximum 8 characters

LED Colour

Fixing Bracket for projecting arm

Photocel Switch

Have this product with its options and price emailed to you as a quote.

Description

LED Pictorial Kit

The most economical way of ensuring your double sided signs are seen day or night is to illuminate them by LED, - and our range of Pictorial Troughlights are designed to do just that.

Stock colours are either Black or White, or we can paint/powder coat them to virtually any RAL colour, and In addition we offer three shades of white lighting, - Cool White, Daylight, and Warm White.

These lights connected directly into your mains supply and you can have them controlled by a timer (not supplied) or a Photocell Switch. These Photocell Switches automatically turn it on at sunset and off at sunrise.

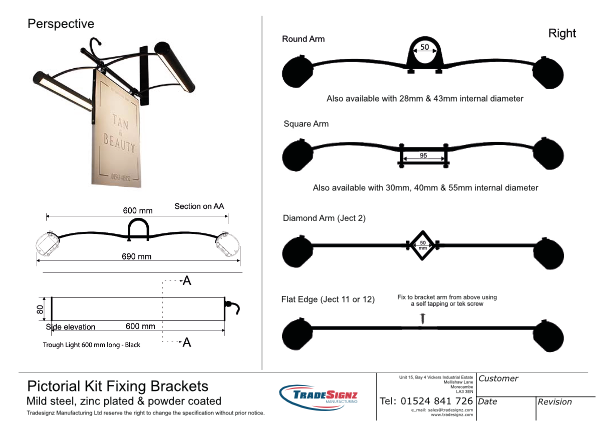

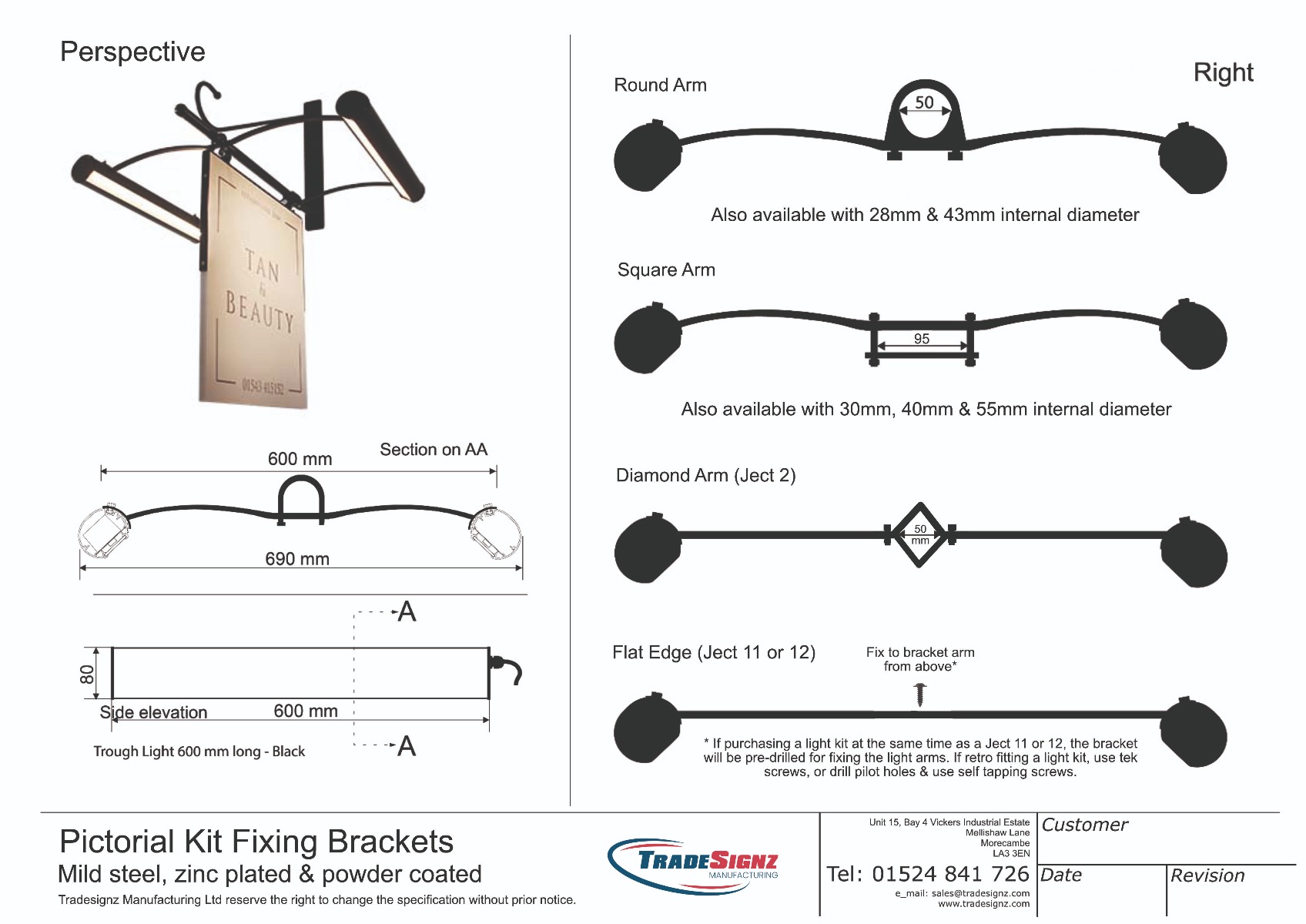

This kit comes complete with two troughlights and the appropiate fixings to mount it to the sign bracket. The Troughs are completely pre-wired (including the Photocell switch if ordered) and come with a 2.5metre power lead ready for connection by your electrician.

Seperate External Photocell Switch's are not pre-wired as it's the fixers decision for its location.

Driver:-

Class 2 IP67 rated Power Supply, 24v, 20W (35w on 800 & 900mm pictorials)
Manufacturer:- Mean Well or equivalent
Input:- 100-240v 0.55A 50/60Hz (35w 1.1A)
Output: +24v 0.84A (35w 1.5a)
Mounted inside the aluminium case

Light Strip:- High Bright

IP67 rated Commercial Grade 24 volt, 12w per metre
60 2835 SMD LED chips per metre, 1440 lumens per metre
Colours:- Either Cool White (6000k) Lux 243, Daylight (4000-4500k) Lux or Warm White (2800-3200k) Lux 325options.
Mounted inside the aluminium case
Link to Lux to Candela conversion https://www.rapidtables.com/calc/light/lux-to-candela-calculator.html

Photocell Switches

Built in Photocel Switch:-

Manufacturer:- Royce Thompson P12HE (or equivelant)
Light switching level:- On<70 LUX Off >105 LUX
Input:-: 230v (+/- 10% Load: 2x250w
Mounted inside the aluminium case

External (Wall Mounted) Photocel Switch:-

Manufacturer:- FRS (or equivelant)
Light switching level:- On<20 LUX Off>80 LUX
Input:-: 230v (+/- 10% Load: 2x400w
For wall mounting

Technical

Driver:-

Class 2 IP67 rated Power Supply, 24v, 20W (35w on 800 & 900mm pictorials)
Manufacturer:- Mean Well or equivalent
Input:- 100-240v 0.55A 50/60Hz (35w 1.1A)
Output: +24v 0.84A (35w 1.5a)
Mounted inside the aluminium case

Light Strip:- High Bright

IP67 rated Commercial Grade 24 volt, 12w per metre
60 2835 SMD LED chips per metre, 1440 lumens per metre
Colours:- Either Cool White (6000k) Lux 243, Daylight (4000-4500k) Lux or Warm White (2800-3200k) Lux 325options.
Mounted inside the aluminium case
Link to Lux to Candela conversion https://www.rapidtables.com/calc/light/lux-to-candela-calculator.html

Photocell Switches

Built in Photocel Switch:-

Manufacturer:- Royce Thompson P12HE (or equivelant)
Light switching level:- On<70 LUX Off >105 LUX
Input:-: 230v (+/- 10% Load: 2x250w
Mounted inside the aluminium case

External (Wall Mounted) Photocel Switch:-

Manufacturer:- FRS (or equivelant)
Light switching level:- On<20 LUX Off>80 LUX
Input:-: 230v (+/- 10% Load: 2x400w
For wall mounting
