JECT 33-600 Crescent Projecting Bracket
- Elegantly crafted
- Dimensions including panel: L 700mm H 610mm W 90mm
- Takes a Round Panel 600mm Diameter in 19mm PVC
- Can be fitted in 2 different ways
- Weight 2.2kg
- Heavy duty steel construction.
- Zinc Plated & Powder Coated black. (other colours available)
Please log in/register to see your discounts
Have this product with its options and price emailed to you as a quote.

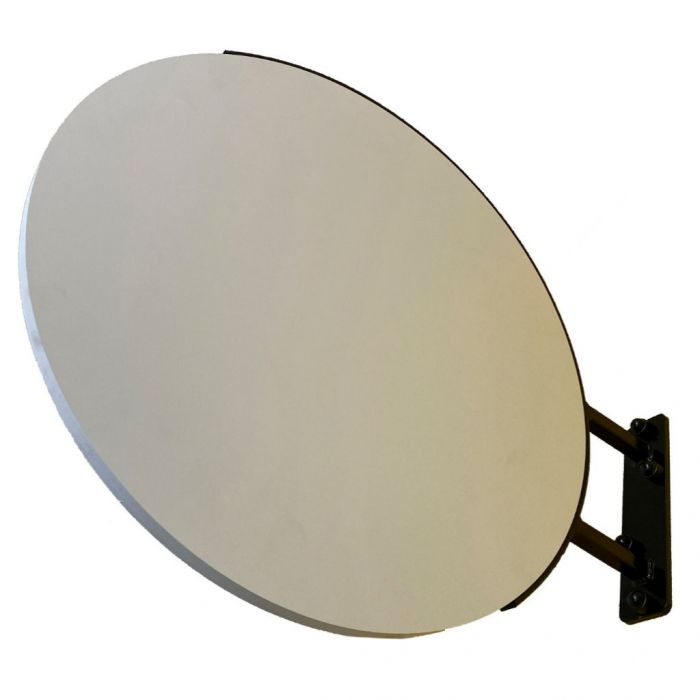

JECT 33-600 Crescent Projecting Sign Bracket
This elegant bracket is designed to be less obtrusive than others and seamlessly intergrate into your sign.
It can be positioned to create either a cradle for your sign, or fit it the other way and it can give your sign that floating feeling.

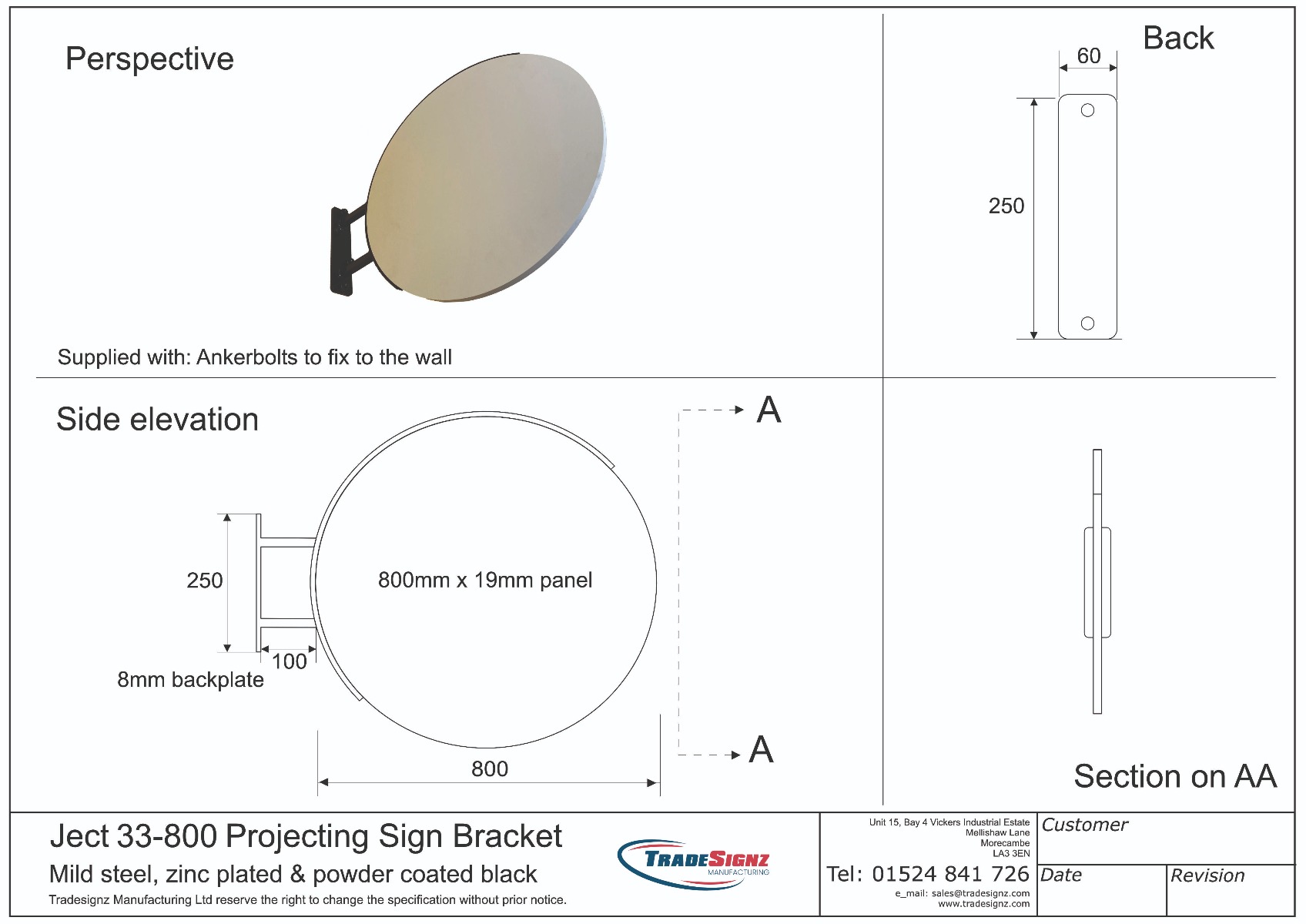

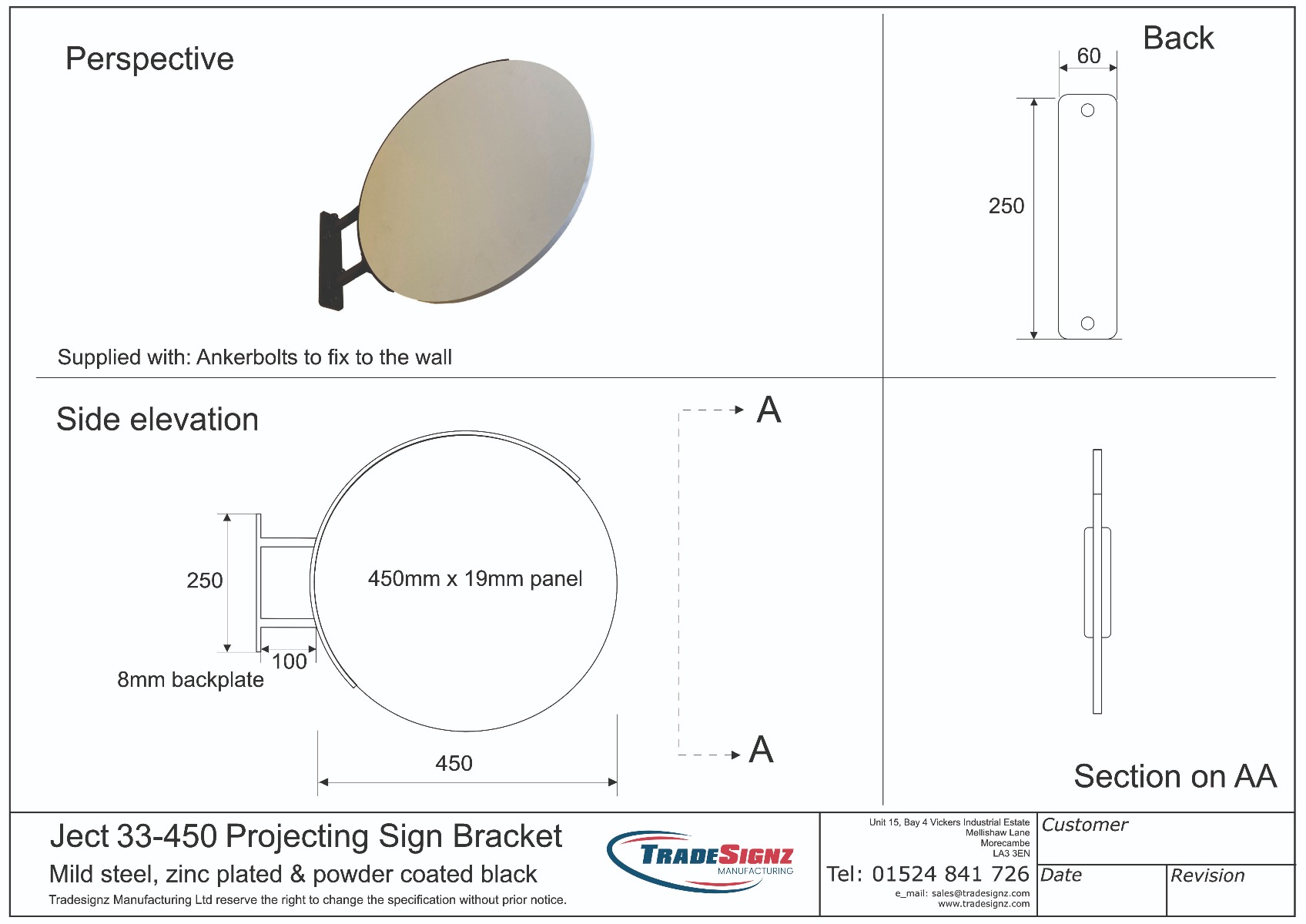

It's hand made from steel, with a 250x60mm backplate. All zinced and powdercoated to protect it from our great British weather.
The bracket is designed to take a 19mm PVC panel which is fixed using 4 x 2" screws.
Panel size and style
Our standard panels are manufactured from 19mm thick PVC and are made to measure. The hanging eyes are epoxy bonded into the panel and you don't need any other fixing to hang it from our bracket.
Any panel shape or size can be made to order - Just call us on 01524 841726 or email email@example.com. We have the following standard shapes available: Square, rectangle, oval, circle and park.
Panel edge profile
Panels can be square edge or have a 'bullnosed' edge. The square edge is ideal for a full printed graphic as it gives you a definite edge to work to.
If you already have your panel we have a number of fixings to attach it to our bracket:
If you have a panel with a substantial frame the Hanger Plate is designed to be screwed to the top edge and will directly hang from the bracket.
The Hanger Straps are a traditional way of hanging heavier panels as the fixings are along the top & down both sides.
We stock several widths, four of which will match this bracket. (not suitable for a panel less than 20mm thick)
The Suspension Eyes are zinc plated and we use a tro pack epoxy to screw & bond them into our 19mm PVC panels.
Our Zinc plated screw Karabina Links are ideal for linking between the Suspension Eyes and your existing bracket. (not usually required if you order one of our brackets)
Our Long Shackles are stainless steel and ideal where you have a thin sheet panel such as AMC or aluminium (up to 10mm thick)
Swing Preventor / Limiter
Occasionally you may need to limit the amount of panel swing or stop it swinging altogether.Our Swing Preventor is a simple bracket that screws to the bottom of the panel and bolts to the wall, whilst the Swing Limiter consists of screw eyes that go into the wall and the panel with a stainless steel cable between them. The amount of swing is governed by how slack you leave the cable.
If your bracket needs to fit to corner of building you can add a Corner Bracket Adapter. If it is a heavy panel then a Cable Stay Kit provides added support.
We can apply digitally printed direct from your file. Please select the option above and attach your artwork file at the checkout (or email it separately to firstname.lastname@example.org quoting the order number)
Please pay careful attention to the following guidelines:
We pride ourselves in offering a high quality and fast turnaround service but we can only do this if you provide artwork files in accordance with the guidelines below.
Failure to follow these guidelines will almost certainly delay your order and/or incur extra costs.
The prices shown are for your artwork to be supplied in a "ready to print" format.
We accept artwork files from various Windows programmes as detailed below. However, for each file/program type please note the format requirements: compression should be turned off.
Supplying us with correct, ready to print artwork is your responsibility. Please check your artwork carefully before submitting it to us as we cannot be held responsible for print errors or delays where artwork has been supplied incorrectly.
We require artwork to be supplied in the following formats:
.ai: When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.
.eps: When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.
.tiff: Please supply tiffs following our guidelines on suitable image resolutions (dpi) below.
.jpeg: Please supply as un-compressed jpeg following our guidelines on suitable image resolutions (dpi) below.
.pdf: Print ready artwork- please ensure this includes the appropriate bleed and crop marks and adheres to our guidelines on image resolution (dpi) below.
Some file formats can be more suitable for certain types of work, please feel free to give a member of our design team a call if you are unsure or have any questions.
Our print machines are CMYK based (Cyan, Magenta, Yellow and Black). Our rip software will automatically convert any Pantone colours to CMYK. If you have any specific Pantone references that need to be matched, please do mention this to a member of our sales team when placing your order.
When supplying rasterised artwork, i.e, eps, tiff, jpg, or print ready .pdf files, please ensure that the resolution (dpi) is set as below, these are absolute minimums. If file size allows then 300 dpi is optimum:
- Full scale (100%) - 72 dpi
- Half scale (50%) - 150 dpi
- Quarter scale (25%) - 300 dpi
- 10 % Scale (for use with large format artwork) - 750dpi
All fonts should be supplied with artwork in a separate folder, labelled accordingly. Where possible, fonts should be outlined. On occasions text can re-flow so providing a pdf or hard copy of the artwork would be beneficial.
If the file size is less than 10 Mb then please use regular email. For larger artwork files, commercial websites such as Mail Big File, We Transfer or drop-boxes are the best way of getting the files to us.
If you have any questions or require any assistance with file types or artwork resolution, please do not hesitate to give us a call on 01524 841726 or email us at email@example.com.
