JECT 1 Projecting Sign Bracket in 5 sizes

Our most popular bracket
Available in 5 sizes, 600mm, 750mm, 850mm, 1000mm & 1200mm long
Zinc plated & powder coated in black (other colours are available)

more info...

from £84.97 ex VAT (each)

Bracket Size

Choose your size of bracket

Bracket Colour

4 Digi Classic RAL

Maximum 4 characters

Panel Style

Panel Type

Aluminium Panel Colour

Panel Accessories

Panel 4 Digit RAL

Panel Width (mm)

Min panel width is 440mm and Max panel width is 1000mm, order no bigger than 100mm less than size of bracket and no smaller than +90mm of eye centres.

Panel Height (mm)

Min panel height is 100mm and Max panel height is 1200mm

Panel Orientation

PVC Panel Edge profile

Graphics Required?

Graphics from

Compatible file extensions to upload: ai, eps, tiff, jpeg, jpg, pdf

Swing Limiter / Preventor

Lighting Options

LED Lighting Colour

Corner Adapter

Cable Stay Kit

PANEL PREVIEW

Please enter all required dimensions to see the preview.

height

Width

yadd

Have this product with its options and price emailed to you as a quote.

Description

JECT 1 Projecting Sign Bracket - our simplest bracket with a round shaft and a steel ball finial.

Display your sign with our Ject 1 Projecting Sign Bracket. This premium hanging sign bracket is manufactured from heavy duty steel, ensuring long-lasting durability with a clean and understated design. Designed with both form and function in mind, this swing sign bracket provides a secure mount for any outdoor sign.

Dimensions:-

Ject 1-60 - L 60cm H 12.5cm W 14cm, eye centres 35cm

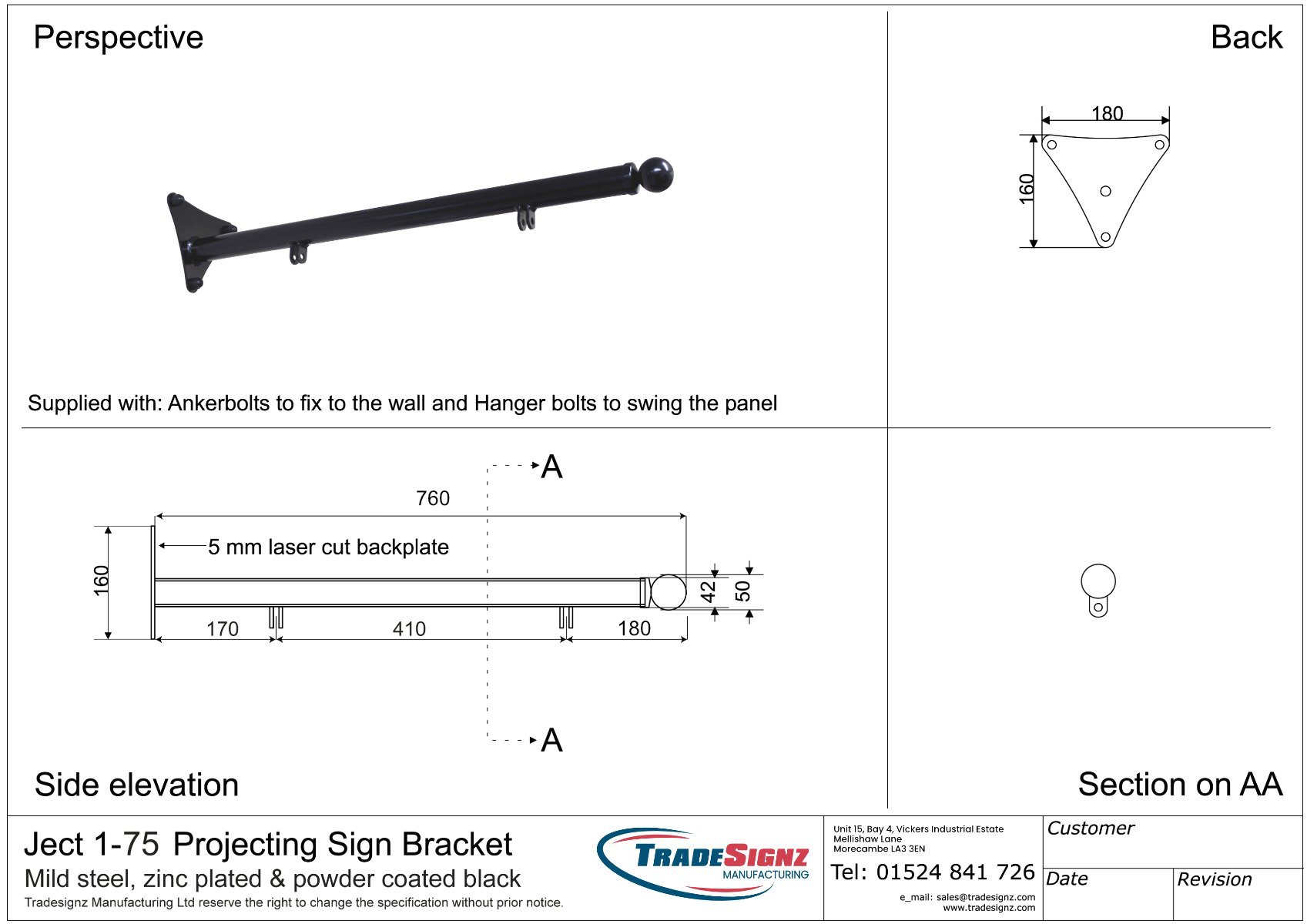

Ject 1-75 - L 75cm H 16cm W 18cm, eye centres 41cm

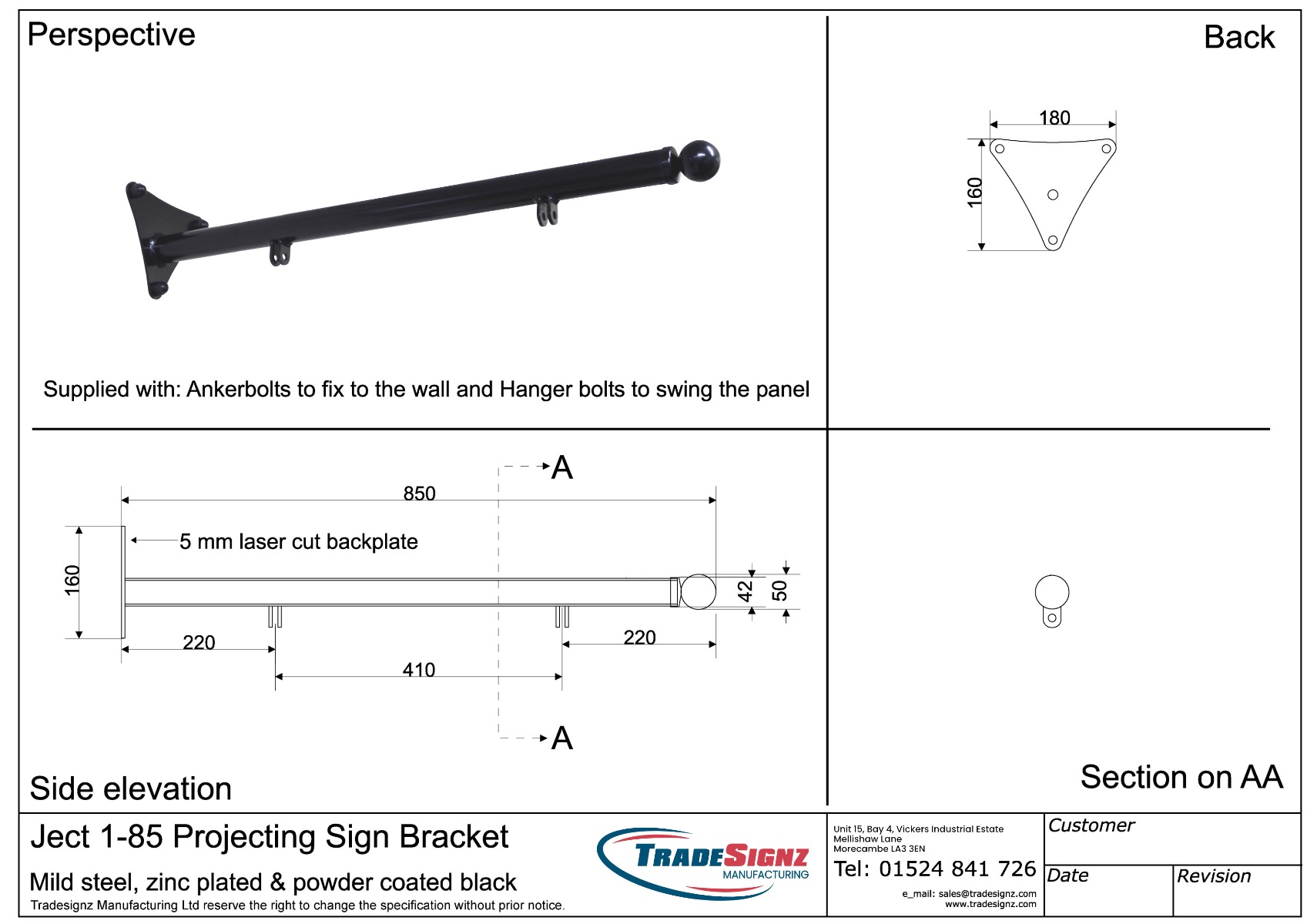

Ject 1-85 - L 85cm H 16cm W 18cm eye centres 41cm
Ject 1-100 - L 100cm H 16cm W 18cm eye centres 41cm or 60cm

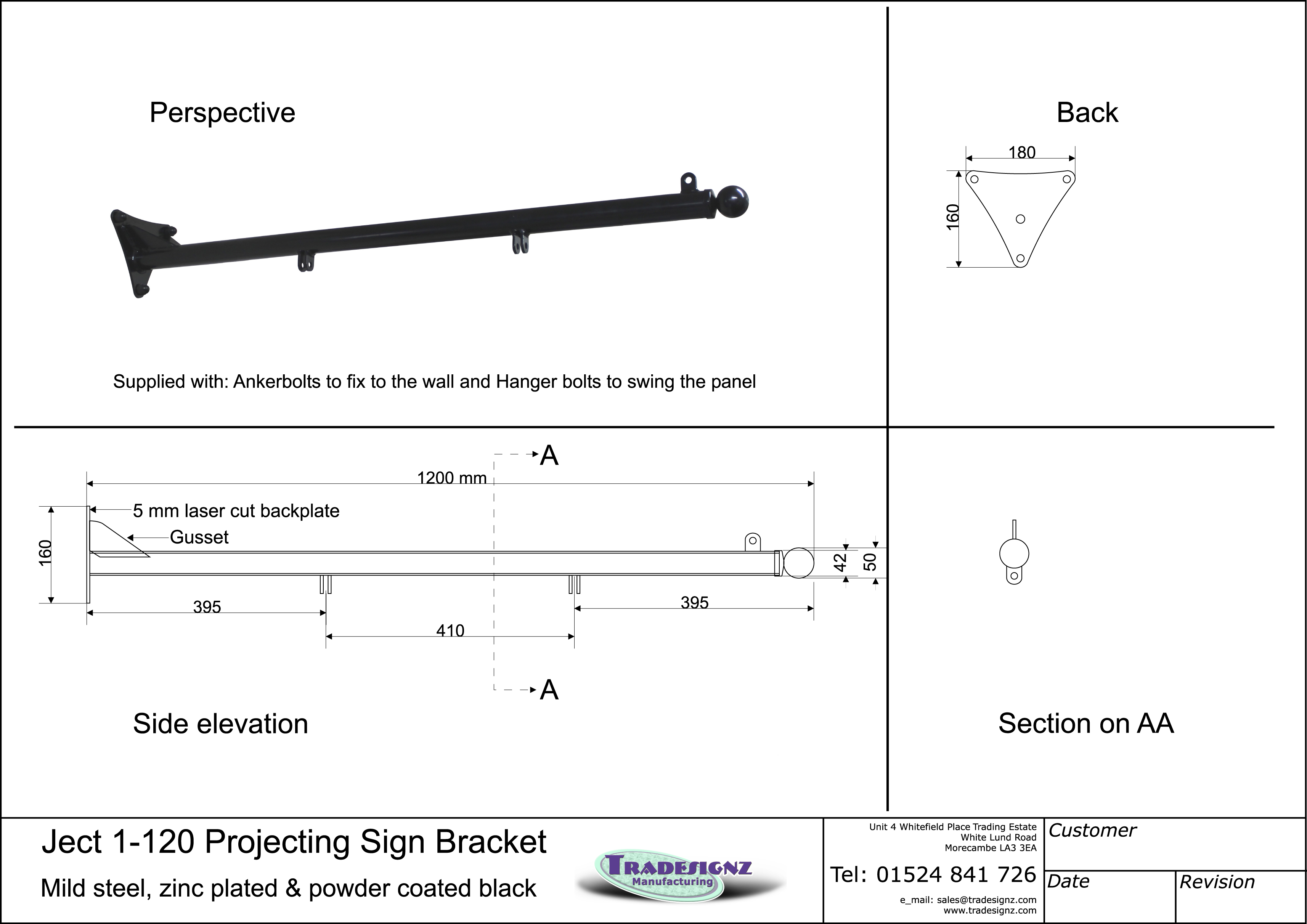

Ject 1-120 - L 120cm H 16cm W 18cm eye centres 60cm
Weight 2-6.5kg
Heavy duty steel construction
Zinc plated & powder coated in black (other colours available)
Supplied with free wall fixings & hanger bolts

If your panel is large or heavy, we suggest you order a Cable Stay Kit with this bracket

Technical

Panels and Accessories

Panel size & style

Our standard panels are manufactured from 19mm thick PVC and are made to measure. The hanging eyes are epoxy bonded into the panel and you don't need any other fixing to hang it from our bracket.

We have the following standard shapes available: square, rectangle, oval, circle and park but any panel shape or size can be made to order.

Call us on 01524 841726 or email sales@tradesignz.com if you have specific requirements.

Suspension eyes, links and shackles

Our suspension eyes are zinc plated and we use a two pack epoxy to screw & bond them into our 19mm PVC panels.

Our Zinc plated screw Karabina Links are ideal for linking between the suspension eyes and your existing bracket. (not usually required if you order one of our brackets).

Our long shackles are stainless steel and ideal where you have a thin sheet panel such as AMC or aluminium (up to 10mm thick).

Swing Limiter / Preventor

You may need to limit the amount of panel swing or stop it swinging altogether. Our Swing Preventor is a simple bracket that screws to the bottom of the panel & bolts to the wall, whilst the Swing Limiter consists of screw eyes that go into the wall and the panel with a stainless steel cable between them. The amount of swing is governed by how slack you leave the cable.

If your bracket needs to fit to corner of building you can add a Corner Bracket Adapter. If it is a heavy panel then a Cable Stay Kit provides added support.

Artwork

Please select the option above and upload your artwork file (or email it separately to studio@tradesignz.com quoting the order number)

Please pay careful attention to the following guidelines:

We pride ourselves in offering a high quality and fast turnaround service but we can only do this if you provide artwork files in accordance with the guidelines below.

Failure to follow these guidelines will almost certainly delay your order and/or incur extra costs.

The prices shown are for your artwork to be supplied in a "ready to print" format.

We accept artwork files from various programmes as detailed below.

Supplying us with correct, ready to print artwork is your responsibility. Please check your artwork carefully before submitting it to us as we cannot be held responsible for print errors or delays where artwork has been supplied incorrectly.

File Formats

We require artwork to be supplied in the following formats:

.ai When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.

.eps When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.

.tiff Please supply tiff files at 300dpi.

.jpg Please supply as un-compressed jpg at 300dpi.

.pdf Print ready artwork- please ensure this includes the appropriate bleed and crop marks.

Some file formats can be more suitable for certain types of work, please feel free to give a member of our design team a call if you are unsure or have any questions.

Colours

Our print machines are CMYK based (Cyan, Magenta, Yellow and Black). Our rip software will automatically convert any pantone colours to CMYK. If you have any specific pantone references that need to be matched, please do mention this to a member of our sales team when placing your order.

Fonts

All fonts should be outlined. Providing a pdf or hard copy of the artwork would be beneficial to ensure any text is reproduced correctly.

Sending Artwork

Artwork can be uploaded using the 'graphics upload' option before adding you item to the basket. If your artwork file size is larger than 10MB, commercial websites such as Mail Big File, We Transfer or drop-boxes are the best way of getting the files to us. If you have any questions or require any assistance with file types or artwork resolution, please do not hesitate to give us a call on 01524 841726 or email us at studio@tradesignz.com.

Sign Lighting

LED Pictorial Floodlight Kit

This small & discrete LED Floodlight Pictorial Kit is both stylish & sturdy. It has a slim curved arm and is available with fittings for mounting to either square or round arms. The light angle is adjustable to match the size of your sign panel.

The slim aluminium bodied LED units are incredibly bright (800 lumens each) but super energy efficient producing the equivalent of a normal 80W bulb using only 10W.
