High-Bright LED Trough Light

An energy efficient solution for lighting outdoor signage
Made to measure
Choice of mounting brackets
Choice of light colour: cool white (most popular) daylight and warm white
2 year RTB warranty

more info...

from £100.54 ex VAT (each)

Length (mm)

Please enter the length you would like your trough light (in millimetres)

LED Light Colour

Colour (body & brackets)

4 Digit RAL

Maximum 8 characters

Bracket Style

Wall Bracket Length

Ledge Bracket Length

Ceiling Bracket Length

Channel Bracket Length

Cable Entry end

Photocel Switch

Have this product with its options and price emailed to you as a quote.

Description

High-Bright LED Trough Lighting

Our High-Bright LED trough lights offer a sleek, energy-efficient solution to enhance any outdoor signage. Trough lighting provides bright, uniform illumination with minimal energy consumption, making them a cost-effective choice for showcasing signage both day and night. Built with durability in mind, they are weather-resistant, ensuring long-lasting performance. With customisable options, our LED trough lights are perfect for highlighting your brand.

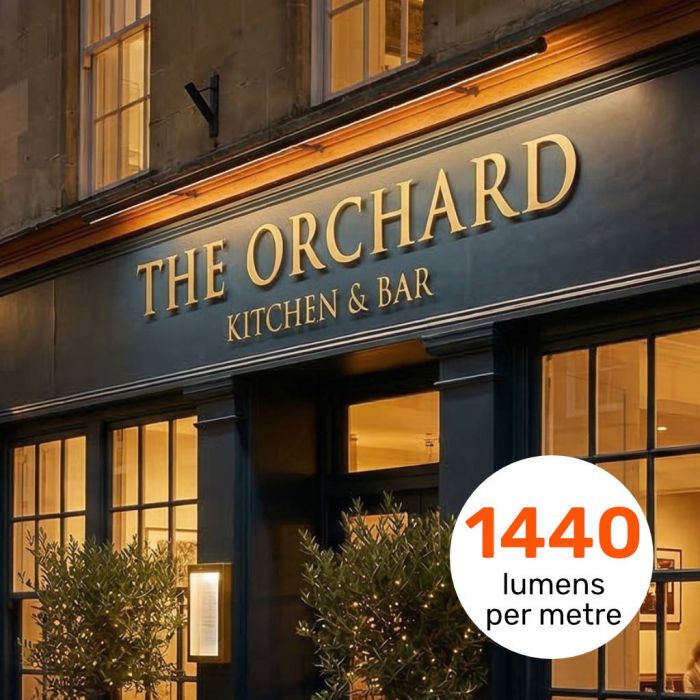

All our trough lighting uses latest and brightest 24v 3528 LED chip sets, at 1440 Lumens per metre, using the highest quality components. The lights are rated IP65 and come with a 2 year RTB warranty. Please note: this light is not suitable for use as an uplighter.

We manufacture our trough lights specifically to your required length. Just enter the length you require, in millimetres. (please note: any length 3m or over may come in 2 sections and due to carrier constraints, any length over 5m will always be supplied in 2 or more sections).

Trough Light Options:

We offer a choice of light colour: cool white, daylight and warm white (for a softer hue).
Colour (body & brackets) black or white are standard colours - other standard 4 digit RAL colours are also available.
Cable Entry - specify the end of the trough where you want the power cable entry (as you are facing the sign).
Photocell switch - to automatically turn it on at sunset and off at sunrise, we offer a built in (pre-wired) version and a separate wall fixing option for your electrician to connect.

Mounting Brackets:

Wall Mount:
- For fascias up to 600mm, 200mm long brackets are suitable.
- For fascias up to 1000mm deep, we recommend 300mm long brackets.
- For fascias up to 1500mm deep, we recommend 400mm long brackets.
- For fascias up to 2000mm deep, we recommend 500mm long brackets.

Ledge Mount
- For fascias up to 400mm deep, we recommend 300mm long brackets.
- For fascias up to 600mm deep, we recommend 400mm long brackets.
- For fascias up to 1500mm deep, we recommend 500mm long brackets.

Ceiling Mount - available in a 50mm bracket only
Channel Mount - available in a 300mm bracket only

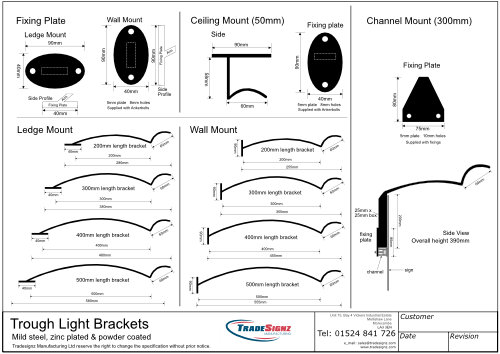

View our bracket dimensions here

Technical

Light Strip: High Bright

Internally mounted inside the aluminium case
IP67 rated
24 volt, 12w per metre
60 2835 SMD LED chips per metre, 1440 lumens per metre
Either Cool White (6000k) Lux 243, Daylight (4000k) and Warm White (2800-3200k) Lux 325options.
Lux to Candela conversion

Driver:

Internally mounted inside the aluminium case
IP67 rated
Mean Well LPB-60-24 or equivalent
Input: 100-240v 2.2A 50/60Hz
Output: +24v 4.2A

Built in Photocel Switch:-

Internally mounted inside the aluminium case
Royce Thompson P12HE or equivalent
70 LUX
Input: 230v (+/- 10% Load: 2x250w

Benefits:

Energy efficient
Low maintenance cost
Consistant illumination
Low Carbon Footprint
