Super-bright LED Trough Light

  • Made to measure
  • Super-bright trough sign light
  • 24v 3528 LED chip sets
  • IP65 (or higher) against the weather, which allows us to give a 2 year guarantee.
  • Choice of light colour, Cool White (the most popular) and Warm White for a softer hue.

more info...

£0.00


Have this product with its options and price emailed to you as a quote.

-

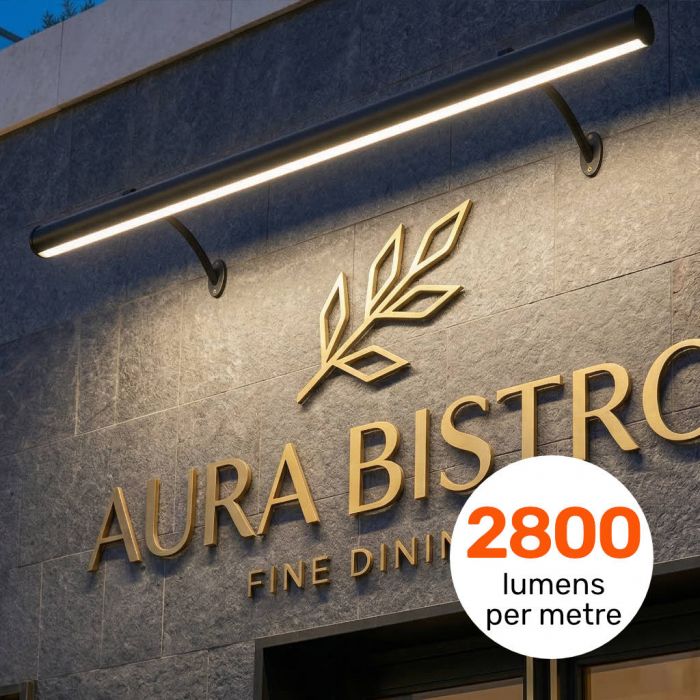

Super-bright is the brightest of our new Sign Trough Light systems, at 2800 lumens per metre.

We've upgraded our Troughlighting to the latest and and brightest 24v 3528 LED chip sets. (from 13-2-2017)

We use only the highest quality components - all of which are rated IP65 (or higher) against the weather, which allows us to give a 2 year guarantee.

We also offer a choice of colour, Cool White (the most popular) and Warm White for a softer hue.


Length of LED Trough -
We manufacture all our Trough Down Lights specifically to your required length. If the size you need isn't listed, choose the next one up & then specify the exect size at the checkout.

Please Note:- Due to carrier constraints, any length over 16' will be supplied in 2 or more sections.

LED Colour  -  Cool White is supplied as standard, unless otherwise specified.

Colour (body & brackets)  -  Black or White are standard colours, - Red, Blue, Silver, Green & Yellow are £40 any other standard 4 digit RAL colours are an additional £60.

Cable Entry -  Is at the left hand end (as you are facing the sign) unless you specify otherwise.

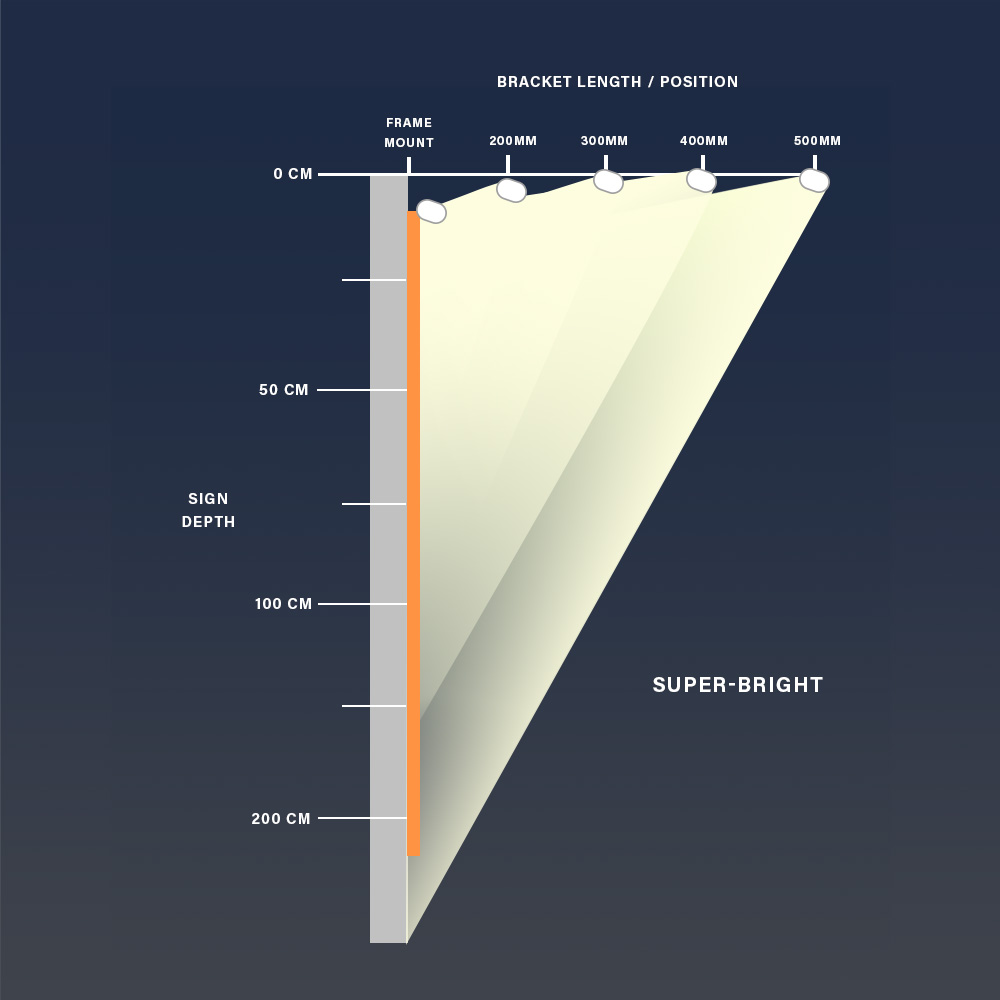

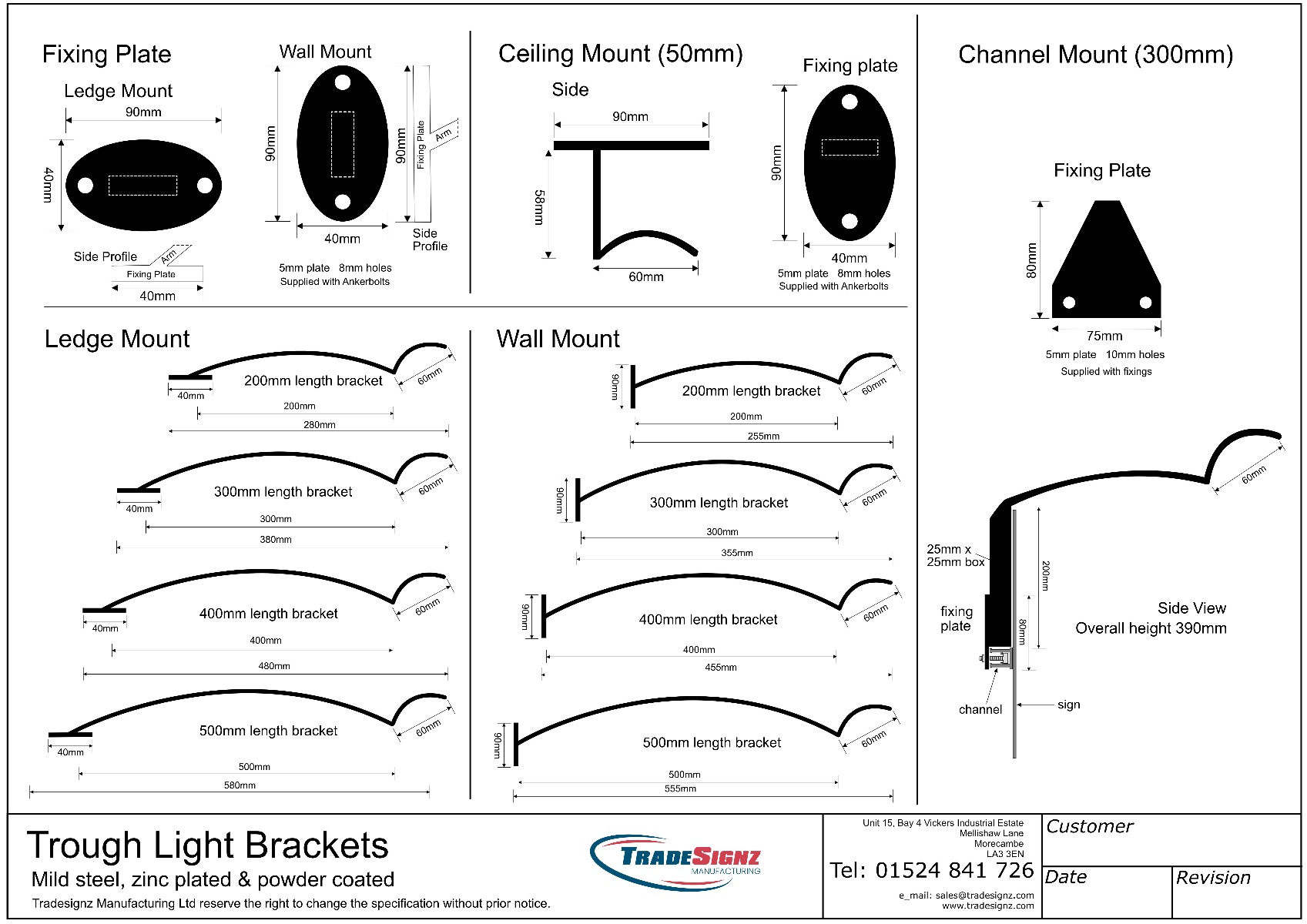

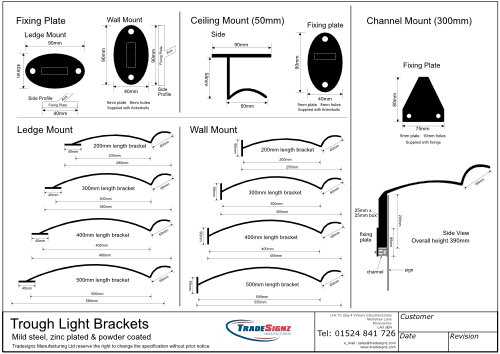

Mounting Brackets - 200mm long brackets are include, (suitable for a fascia depth of up to 400mm).

  • For fascias up to 600mm deep we recommend 300mm long brackets.
  • For fascias up to 1500mm deep we recommend 400mm long brackets.
  • For fascias over 1500mm deep we recommend 500mm long brackets.

Photocell Switch - To automatically turn it on at sunset and off at sunrise, we offer a built in (pre-wired) version at £25 and a seperate option at £30 for you electrician to connect.

Delivery:- 3-5 days Black or White, 7-10 days for special colours.










































Light Strip:Super Bright

  • Internally mounted inside the aluminium case
  • IP67 rated
  • 24 volt, 24w per metre
  •  24v 3528 LED chip sets, 2800 lumens per metre
  • Either Cool White (6000k) Lux 468 and Warm White (2800-3200k) Lux 556 options.
  • Link to Lux to Candela conversion

Driver:

  • Internally mounted inside the aluminium case
  • IP67 rated
  • Mean Well LPB-60-24 or equivalent
  • Input: 100-240v   2.2A  50/60Hz
  • Output: +24v   4.2A



Benefits:
  • More energy efficient
  • Lower maintenance cost
  • Consistant illumination
  • Get the cost back from HMRC
  • Low Carbon Footprint

Photocell Switches:

Designed to automatically switch your lights on at dusk, and off at daybreak, when positioned within a clear unobstructed view of daylight, avoiding shaded areas and direct or reflected light from other sources.

We offer two types, a Built In version, and a seperate Wall Mounted option.



Built in Photocel Switch:

  • Internally mounted inside the aluminium case
  • Royce Thompson P12HE
  • 70 LUX
  • Input: 230v (+/- 10%  Load: 2x250w
  • To test, covering the Photocell will switch your lights on within 40 seconds, and uncovering the photocell will turn them off within 40 seconds.
  • Don't use fluorescent lighting to test as they may not be sufficient to demonstrate full functionality.

Wall Mount version

  • Switching points:- On<20Lux, Off>80Lux
  • Ideally mounted where the Photocell can 'see' North.
  • When testing, the lights will operate within 15-120 seconds of the unit being covered, and turn off within a similar perion of the cover being taken off the Photocell unit.
  •  The unit must be fitted by a suitably quallified person.
   High Bright  SuperBright
 LED's/metre  60   120
 Watts/metre  12   24
 Voltage  24   24
 Chipset  3528   3528
 IP rating   IP67   IP67
 Beam Angle  120deg   120deg
 Lumens/metre
 Warm White  1260  2440
 Cool White  1440  2800



LED Trough Lighting



All components are IP rated for outdoor use.

Bracket Fix Plate Dimensions: 61 x 36mm portrait
