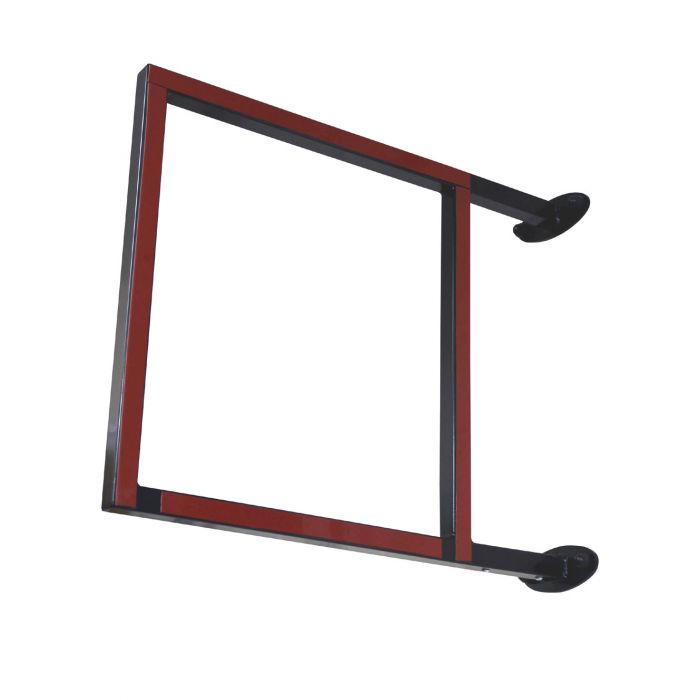

JECT 11 Square Sign Bracket various sizes from 400mm up to 800mm

  • L 40cm H 40cm W 15cm
  • L 45cm H 45cm W 15cm
  • L 50cm H 50cm W 15cm
  • L 55cm H 55cm W 15cm
  • L 60cm H 60cm W 15cm
  • L 70cm H 70cm W 15cm
  • L 75cm H 75cm W 15cm
  • L 80cm H 80cm W 15cm
  • Heavy duty steel construction
  • Fixing feet size - 17cm x 8.5cm (base plate), 10cm long
  • Zinc plated & powder coated in black (other colours available)

more info...

from £178.74 ex VAT (each)

Maximum 4 characters





Compatible file extensions to upload: jpg, jpeg, ai, tiff, pdf, eps


Have this product with its options and price emailed to you as a quote.

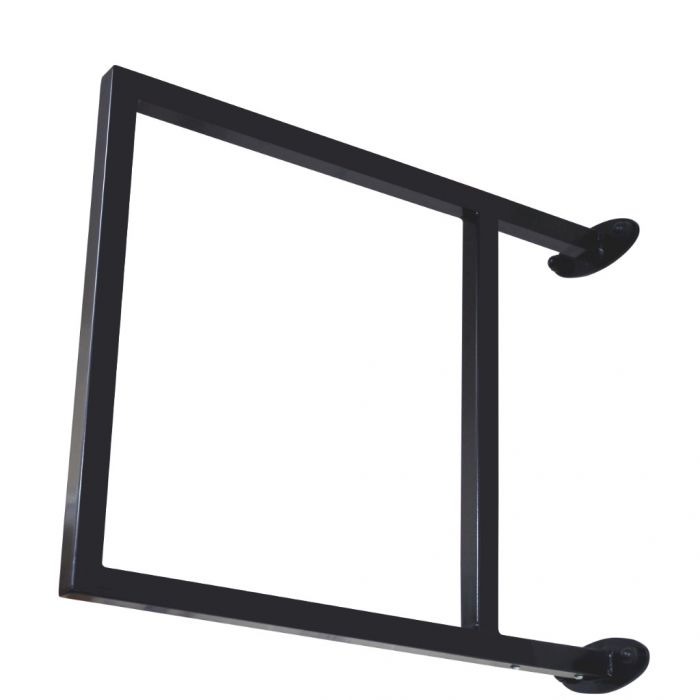

JECT 11  Square Projecting Sign Bracket Frame

  • Fixing feet size - 10cm long
  • 15cm x 6cm base plate (400-600 sizes)
  • 17cm x 8.5cm base plate (700-800 sizes)
  • Heavy duty steel construction
  • Zinc plated & powder coated in black.
  • Supplied with free wall fixings.

Other sizes available:

  • L 40cm H 40cm W 15cm
  • L 45cm H 45cm W 15cm
  • L 50cm H 50cm W 15cm
  • L 55cm H 55cm W 15cm
  • L 60cm H 60cm W 15cm
  • L 70cm H 70cm W 15cm
  • L 75cm H 75cm W 15cm
  • L 80cm H 80cm W 15cm

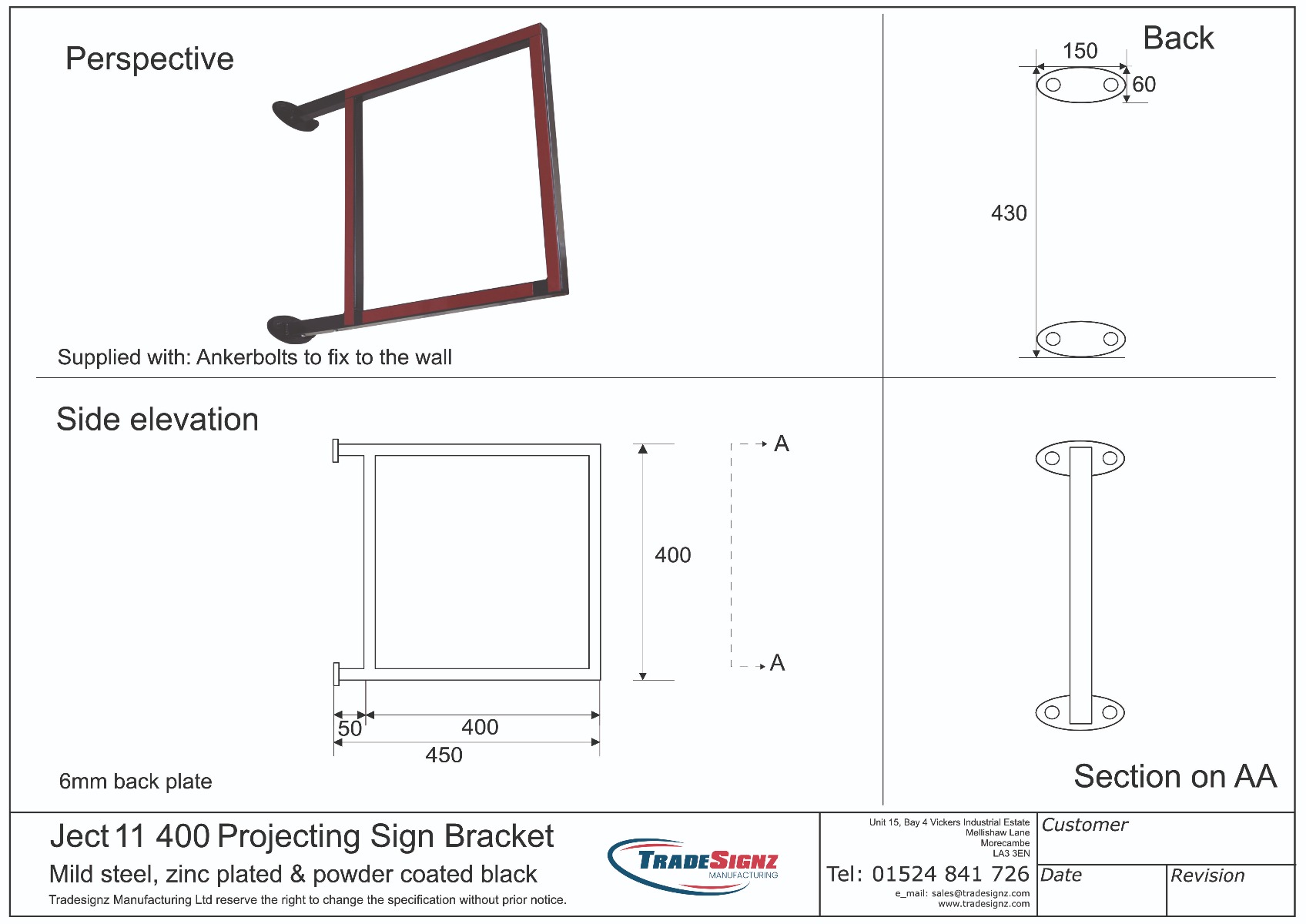

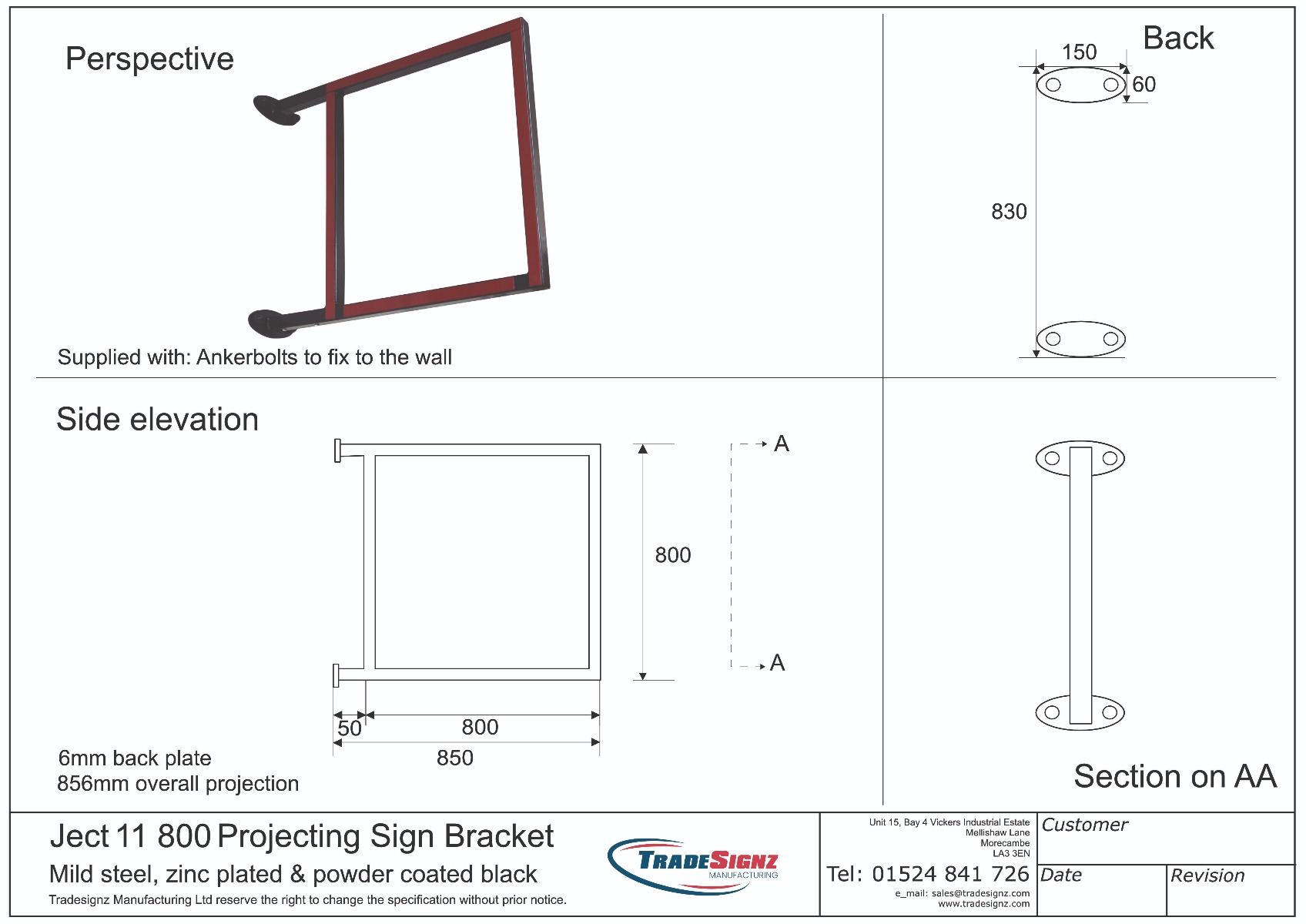

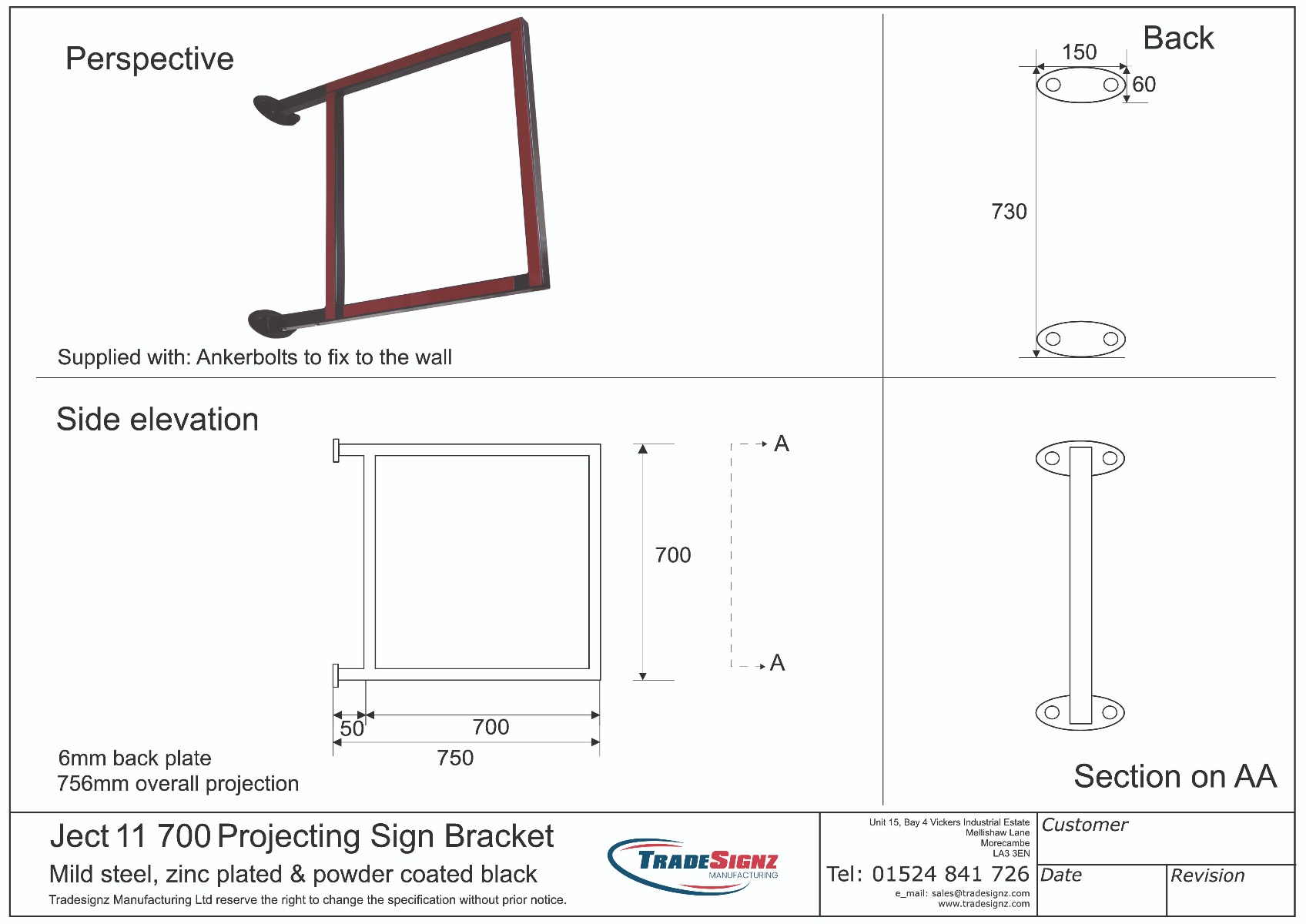

Technical Drawing Ject 11 400Technical Drawing Ject 11 450Technical Drawing Ject 11 500Technical Drawing Ject 11 550Technical Drawing Ject 11 600Technical Drawing Ject 11 700Technical Drawing Ject 11 750Technical Drawing Ject 11 800



PANELS

The frame takes 3mm aluminium composite panel. Choose size relevant to size of frame.





Artwork

Please select the option above and upload your artwork file (or email it separately to studio@tradesignz.com quoting the order number)

Please pay careful attention to the following guidelines:

We pride ourselves in offering a high quality and fast turnaround service but we can only do this if you provide artwork files in accordance with the guidelines below.

Failure to follow these guidelines will almost certainly delay your order and/or incur extra costs.

The prices shown are for your artwork to be supplied in a "ready to print" format.

We accept artwork files from various programmes as detailed below.

Supplying us with correct, ready to print artwork is your responsibility. Please check your artwork carefully before submitting it to us as we cannot be held responsible for print errors or delays where artwork has been supplied incorrectly.

File Formats

We require artwork to be supplied in the following formats:

.ai  When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.

.eps  When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.

.tiff  Please supply tiff files at 300dpi.

.jpg  Please supply as un-compressed jpg at 300dpi.

.pdf  Print ready artwork- please ensure this includes the appropriate bleed and crop marks.

Some file formats can be more suitable for certain types of work, please feel free to give a member of our design team a call if you are unsure or have any questions.

Colours

Our print machines are CMYK based (Cyan, Magenta, Yellow and Black). Our rip software will automatically convert any pantone colours to CMYK. If you have any specific pantone references that need to be matched, please do mention this to a member of our sales team when placing your order.

Fonts

All fonts should be outlined. Providing a pdf or hard copy of the artwork would be beneficial to ensure any text is reproduced correctly.

Sending Artwork

Artwork can be uploaded using the 'graphics upload' option before adding you item to the basket. If your artwork file size is larger than 10MB, commercial websites such as Mail Big File, We Transfer or drop-boxes are the best way of getting the files to us. If you have any questions or require any assistance with file types or artwork resolution, please do not hesitate to give us a call on 01524 841726 or email us at studio@tradesignz.com.

LIGHTING

We have the following lighting option to go with this bracket:

LED Floodlight Pictorial Kit

This small & discrete LED flood lights Pictorial Kit is both stylish & sturdy. It has a slim curved arm and we have fittings for mounting to either square or round arms, The light angle is adjustable to match the size of your sign panel.

The slim aluminium bodied LED units are incredibly bright ( 800 lumens each) but super energy efficient producing the equivalent of a normal 80w bulb using only 10w.

Floodlight Pictorial
Trough Light Pictorial

LEDs will work out a great deal cheaper in the long run for your customer simply because they consume about 80% less electricity and more importantly, they last for about 50,000 hours so there's no lamp changing and all that which it entails.

The kits are complete with the two trough lights with cables and the fixings to mount them to this Ject sign bracket.

Pictorial Trough
Swan Neck Cowl Light Pictorial

For something more ornate, we have a traditional pair of cowl lights.

These lights are powder coated and are available in black or silver. We can also supply them with the mounting bracket and a pair of ES LED bulbs if required.

 Pictorial Swan
