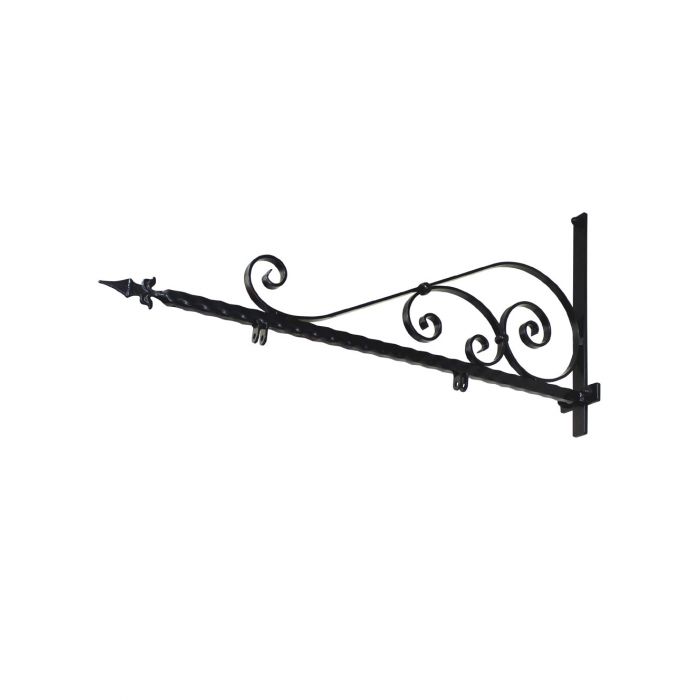

JECT 5 Projecting Sign Bracket

  • One of our larger stock brackets at 980mm long.
  • Dimensions: L 98cm H 50cm W 12cm
  • Hanging Eye centres: 41cm
  • Weight 5.5kg
  • Heavy duty steel construction.
  • Zinc Plated & Powder Coated black. (Other colours available)
  • Panels and accessories available.
  • Minimum panel width: 500mm
  • Maximum panel width: 880mm

more info...

£218.12 ex VAT (each)

Maximum 4 characters

Min panel width is 500mm and Max panel width is 880mm

Min panel height is 100mm and Max panel height is 1200mm

Compatible file extensions to upload: ai, eps, tiff, jpeg, jpg, pdf


Please enter all required dimensions to see the preview.

Have this product with its options and price emailed to you as a quote.

JECT 5 Projecting Sign Bracket

The cross base is laser cut from 8mm plate steel with 3 No. 13mm fixing holes, and the projecting arm is 25 x 25mm 'antique' hammered mild steel with a cast iron fleur-de-lys finial on the end, and it's all set off with a beautiful double scroll.

  • Dimensions: L 98cm H 50cm W 12cm
  • Hanging Eye centres: 41cm
  • Weight 5.5kg
  • Heavy duty steel construction.
  • Zinc Plated & Powder Coated black. (Other colours available)

 Ject 5 & Fixings

Supplied with free wall fixings & hanger bolts.

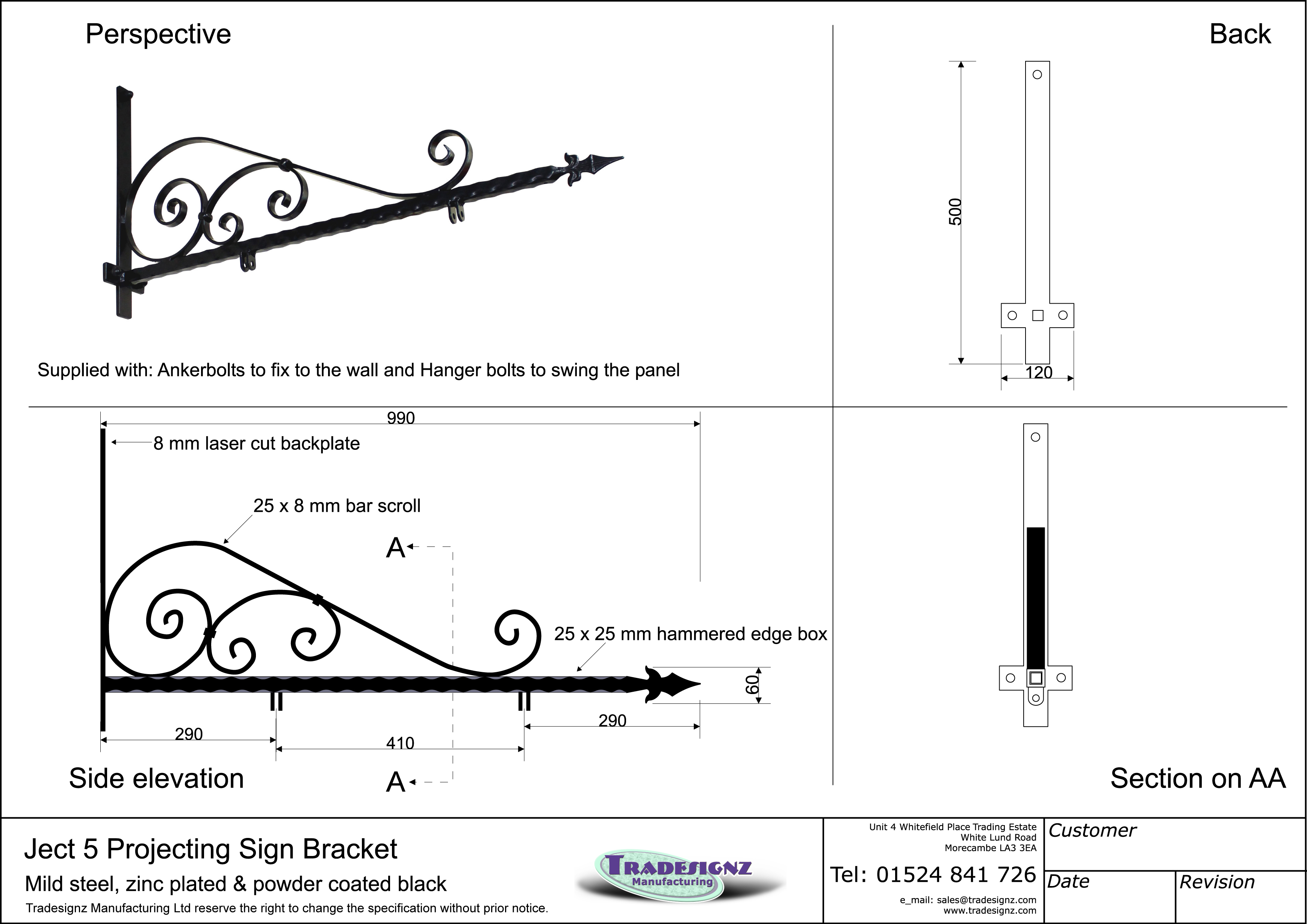

Ject 5 projecting bracket drawing

Panel size and style

Our standard panels are manufactured from 19mm thick PVC and are made to measure. The hanging eyes are epoxy bonded into the panel and you don't need any other fixing to hang it from our bracket.

Any panel shape or size can be made to order - Just call us on 01524 841726 or email We have the following standard shapes available: Square, rectangle, oval, circle and park.

Panel Shapes

Panel edge profile

Panels can be square edge or have a 'bullnosed' edge. The square edge is ideal for a full printed graphic as it gives you a definite edge to work to.

Panel Edge

Panel Accessories

If you already have your panel we have a number of fixings to attach it to our bracket:

Hanger Plate or Hanger strap

If you have a panel with a substantial frame the Hanger Plate is designed to be screwed to the top edge and will directly hang from the bracket.

The Hanger Straps are a traditional way of hanging heavier panels as the fixings are along the top & down both sides.

We stock several widths, four of which will match this bracket. (not suitable for a panel less than 20mm thick)

Hanger Plate

Hanger Plate

Hanger Strap

Hanger Strap
Suspension eyes, links and shackles

The Suspension Eyes are zinc plated and we use a tro pack epoxy to screw & bond them into our 19mm PVC panels.
Our Zinc plated screw Karabina Links are ideal for linking between the Suspension Eyes and your existing bracket. (not usually required if you order one of our brackets)
Our Long Shackles are stainless steel and ideal where you have a thin sheet panel such as AMC or aluminium (up to 10mm thick)

Eye Shackles Hook

Swing Preventor / Limiter

Occasionally you may need to limit the amount of panel swing or stop it swinging altogether.Our Swing Preventor is a simple bracket that screws to the bottom of the panel and bolts to the wall, whilst the Swing Limiter consists of screw eyes that go into the wall and the panel with a stainless steel cable between them. The amount of swing is governed by how slack you leave the cable.

If your bracket needs to fit to corner of building you can add a Corner Bracket Adapter. If it is a heavy panel then a Cable Stay Kit provides added support.

Swing Preventor


We can apply digitally printed direct from your file. Please select the option above and attach your artwork file at the checkout (or email it separately to quoting the order number)

Please pay careful attention to the following guidelines:

We pride ourselves in offering a high quality and fast turnaround service but we can only do this if you provide artwork files in accordance with the guidelines below.

Failure to follow these guidelines will almost certainly delay your order and/or incur extra costs.

The prices shown are for your artwork to be supplied in a "ready to print" format.

We accept artwork files from various Windows programmes as detailed below. However, for each file/program type please note the format requirements: compression should be turned off.

Supplying us with correct, ready to print artwork is your responsibility. Please check your artwork carefully before submitting it to us as we cannot be held responsible for print errors or delays where artwork has been supplied incorrectly.

File Formats

We require artwork to be supplied in the following formats:

.ai:     When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.

.eps:  When supplying artwork in this format, please ensure that all fonts are outlined and any images are embedded or supplied as separate image files.

.tiff:    Please supply tiffs following our guidelines on suitable image resolutions (dpi) below.

.jpeg: Please supply as un-compressed jpeg following our guidelines on suitable image resolutions (dpi) below.

.pdf:   Print ready artwork- please ensure this includes the appropriate bleed and crop marks and adheres to our guidelines on image resolution (dpi) below.

Some file formats can be more suitable for certain types of work, please feel free to give a member of our design team a call if you are unsure or have any questions.


Our print machines are CMYK based (Cyan, Magenta, Yellow and Black). Our rip software will automatically convert any Pantone colours to CMYK. If you have any specific Pantone references that need to be matched, please do mention this to a member of our sales team when placing your order.

Image Resolution

When supplying rasterised artwork, i.e, eps, tiff, jpg, or print ready .pdf files, please ensure that the resolution (dpi) is set as below, these are absolute minimums. If file size allows then 300 dpi is optimum:

  •          Full scale (100%) - 72 dpi
  •          Half scale (50%) - 150 dpi
  •         Quarter scale (25%) - 300 dpi
  •         10 % Scale (for use with large format artwork) - 750dpi


All fonts should be supplied with artwork in a separate folder, labelled accordingly. Where possible, fonts should be outlined. On occasions text can re-flow so providing a pdf or hard copy of the artwork would be beneficial.

Sending Artwork

If the file size is less than 10 Mb then please use regular email. For larger artwork files, commercial websites such as Mail Big File, We Transfer or drop-boxes are the best way of getting the files to us.


If you have any questions or require any assistance with file types or artwork resolution, please do not hesitate to give us a call on 01524 841726 or email us at


We have the following lighting option to go with this bracket:

LED Floodlight Pictorial Kit

This small & discrete LED flood lights Pictorial Kit is both stylish & sturdy. It has a slim curved arm and we have fitings for mounting to either square or round arms, The light angle is adjustable to match the size of your sign panel.

The slim aluminium bodied LED units are incredibly bright ( 800 lumens each) but super energy efficient producing the equivelant of a normal 80w bulb using only 10w.

Floodlight Pictorial
Trough Light Pictorial

LED's will work out a great deal cheaper in the long run for your customer simply because they consume about 80% less electricity and more importantly they last for about 50,000 hours so no lamp changing with all that that entails.

The kits are complete with the two trough lights with cables and the fixings to mount them to this Ject sign bracket.

Pictorial Trough
Swan Neck Cowl Light Pictorial

More ornate & traditional are a pair of Cowl Lights.

They are powder coated and we stock them in Black, Silver and we supply them with the mounting bracket and a pair of ES LED bulbs

 Pictorial Swan
