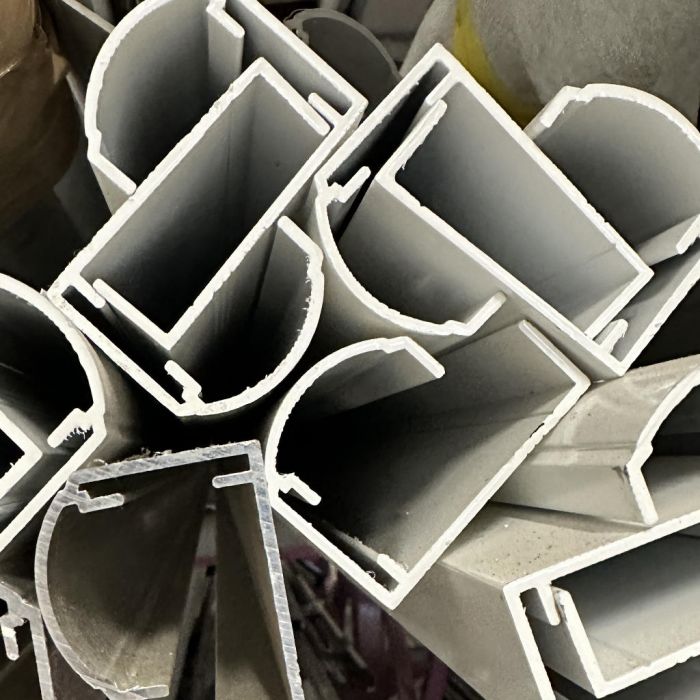

PanelTrim DIY Lengths - Bullnose

  • The country's most popular sign frame system
  • Ready for you to cut to your frame size, as and when you need it
  • Available with corner fixings and panel locks
  • Silver Anodised, Black or White


more info...

£0.00 ex VAT (each)

Have this product with its options and price emailed to you as a quote.

Our stylish Bullnose PanelTrim framing has a cover face of 35mm, - making it suitable for all but the smallest or largest of signs.


Colours      We stock Anodised Silver, and powder coated Black or White for nextday despatch, or special colours may add 7-10 days.

Corner Fixings      Knock-in corners are supplied in packs of 4.

Panel Locks      If your sign Is longer than a single panel, you should use a pair of panel locks to keep the panels together to ensure no gaps appear between the sheets.

Panel Thickness     Bullnose PanelTrim frames will take either a 3mm or 5mm thick panel, such as ACM, Acrylic or PVC Foam.

Hanger Strip      It is best practice to suspend the panel from the top rail by means of a 'hanger strip' so that the panel will always hang straight & flat.

If you just stand the panel in the bottom rail there is a danger that it may become distorted due to it's own weight, particularly in the summer when the panel can get very hot & lose their rigidity. This sort of problem is more likely when the panel is Acrylic or Foam PVC, but even if your using ACM, its still better to use Hanger Strips because then the bottom of the panel dosn't get stuck in the build up of dirt in the bottom frame, making them easier to get them in & out in the future.

Panel Trim Medium



  1. Remember that the panel needs to be loose enough to allow it to expand in the summer & contract in the winter without it becoming trapped & then distorted so we suggest that your panel be 30mm less than the overall frame size, and that you notch the corners as shown so as to prevent the panel nipping in the corners.
  2. If your sign is made up of more than one panel you really should 'half lap' the joint and fit anti flex plates and put 'Panel Locks' at the top. This is to keep the panels tight together at all times, which looks better, and also prevents the wind getting behind the panels, which can risk blowouts.
Panel trim - half lat
  1. A run of grease along the hanger strip & on the frame where it touches the panel makes it easier to get in & out in the future.

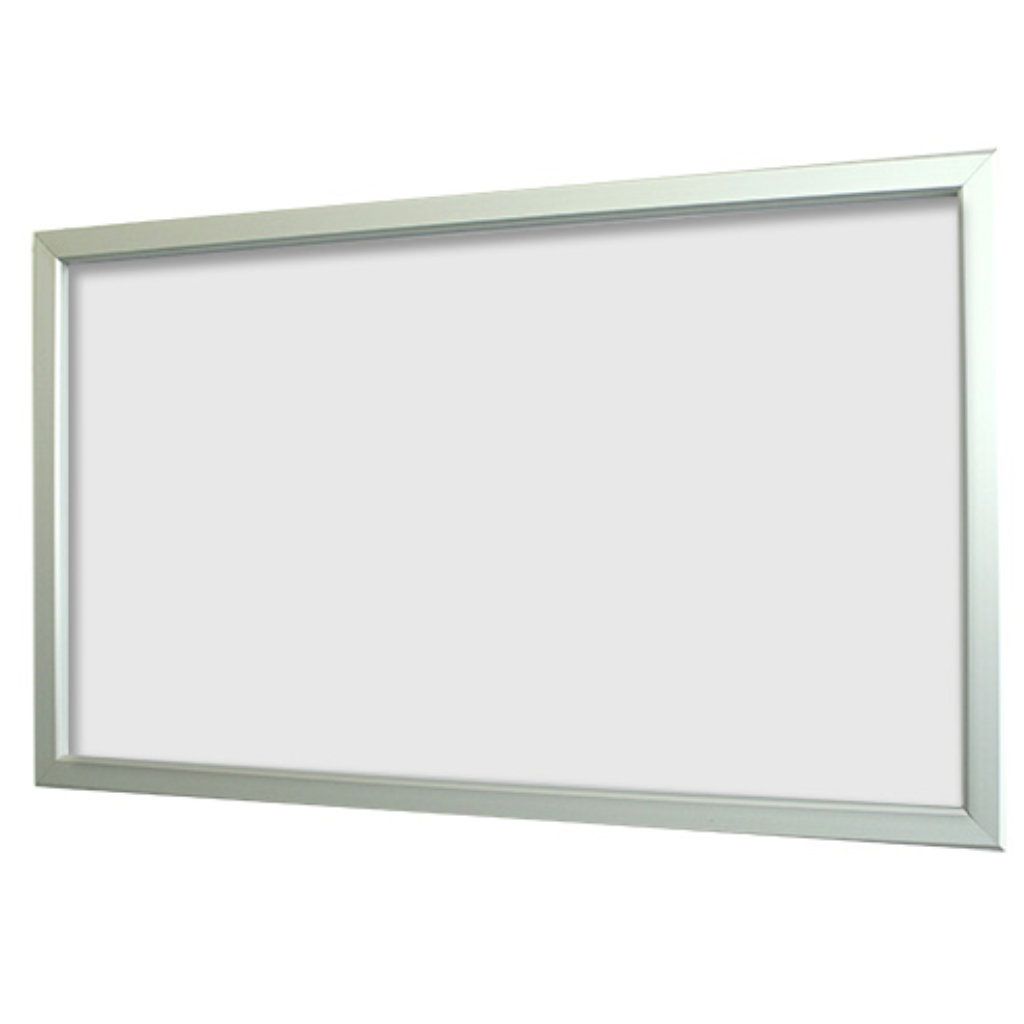

Panel Trim Frame - medium



PanelTrim Profiles

PanelTrim Frame Profiles
